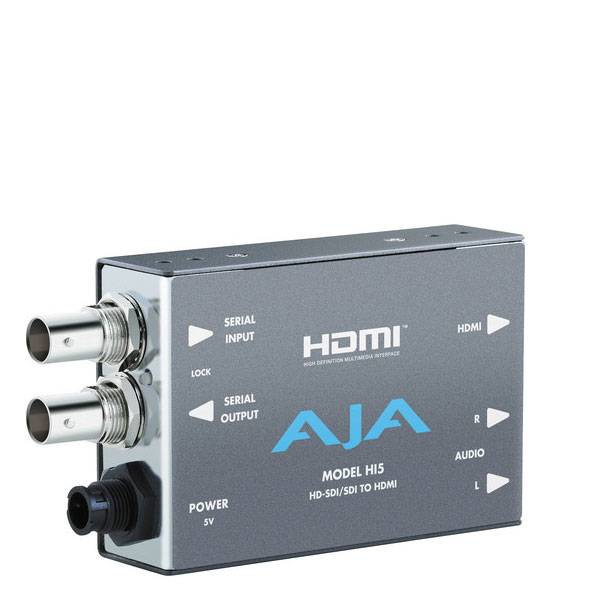

CONVERSOR AJA Hi5 SDI PARA HDMI
Input 1x HD/SD-SDI (SMPTE 259/292/296)
Formats:
525i
625i
720p 50/59.94/60
1080i 50/59.94/60
1080p23.98
1080p24
1080p25
1080p29.97
1080p30
Outputs 1x HDMI 1.2, supports 8-channel embedded audio (HDCP content not supported)
1x 2-channel L/R audio on RCA
1x equalized HD/SD-SDI loop-output
Power +5 V DC, 3 W
Dimensions 4.6 x 2.4 x 1" (11.7 x 6 x 2.5 cm)
The AJA Hi5 HD/SD-SDI to HDMI Video and Audio Converter with DWP converts an SDI signal to HDMI for monitoring on an HDMI display. 8-channel embedded audio gets passed as well. Additionally 2-channel RCA outputs are available for separate audio monitoring. Linked to the SDI input is an equalized SDI loop-output that can be used for outputting to an SDI monitor at the same time as to an HDMI monitor.
