VIDEO LINK TERADEK BOLT 500 SDI e HDMI
Video Inputs 1 x 75 Ohms BNC
1 x HDMI female Type A
Video Outputs 1 x 75 Ohms BNC (loop-out)
Input / Output 3G-SDI/HDMI
Color Sampling SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
HDMI: RGB 4:4:4, 8-bit
Latency <0.001 seconds
Delay <0.001 sec (when no video format conversion is enabled)
Supported Resolutions 1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
1080p sf23.98 / 24 / 25 / 29.97 / 30
1080i 50 / 59.94 / 60
720p 50 / 59.94 / 60
480p 59.94 / 576p 50 (via HDMI ports only)
480i (NTSC) / 576i (PAL)
Video Compression Visually lossless
Color Correction CDL/1024 1D LUT (supports 10-bit color)
33 x 33 x 33 3D LUT (supports 10-bit color)
Frequency Non-DFS Frequencies:
5.19 to 5.23 GHz
5.755 to 5.795 GHz
DFS Frequencies:
5.27 to 5.55 GHz
5.67 GHz
Channel Selection Auto
RF Power 17 dBm EIRP
Range Up to 500' (152 m)
Encryption AES-128
Audio Compression 48 kHz 24-bit PCM
Audio Input Embedded
Switches On/Off
Reset Switch
Application Bolt Manager Application for OSX & Windows
Noise Rejection Can coexist with Wi-Fi and 5 GHz cordless phones
Construction Milled aluminum (chassis) and regulation-compliant PCB
Plastic cap
Power Input Connector 2-pin 7 to 28 VDC
Power Consumption 7.3 W nominal @ 1080p
Operating Temperature 32 to 104°F (0 to 40°C)
Dimensions 1.0 x 2.6 x 4.0" (2.4 x 6.6 x 10.2 cm)
Weight 7.6 oz (217 g)
Packaging Info
Box Dimensions (LxWxH) 6.6 x 6.5 x 4.8"
Bolt 500 3G-SDI/HDMI Video Receiver
Video Outputs 1 x 75 Ohms BNC
1 x Micro-USB 3.0 female type B
1 x HDMI Type A female
Input / Output 3G-SDI/HDMI
Color Sampling SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
HDMI: RGB 4:4:4, 8-bit
Latency <0.001 seconds
Resolution 1080p60
Video Compression Visually lossless
Test Pattern Generator Custom output formatted test pattern over HDMI and SDI
Color Correction CDL/1024 1D LUT (supports 10-bit color)
33 x 33 x 33 3D LUT (supports 10-bit color)
Frequency Non-DFS Frequencies:
5.19 to 5.23 GHz
5.755 to 5.795 GHz
DFS Frequencies:
5.27 to 5.55 GHz
5.67 GHz
Channel Selection Auto
RF Power 15 dBm EIRP
Range Up to 500' (152 m)
Encryption AES-128
Audio Compression 48 kHz 24-bit PCM
Audio Input Embedded
OSD Appears on the video output which can be controlled with the menu joystick
Switches On/Off
Reset Switch
Application Bolt Manager Application for Mac OS X & Windows
Noise Rejection Can coexist with Wi-Fi and 5 GHz cordless phones
Construction Milled aluminum (chassis) and regulation-compliant PCB
Plastic cap
Power Input Connector 2-pin 7 to 28 VDC
Power Consumption 9 W nominal @ 1080p
Operating Temperature 32 to 104°F (0 to 40°C)
Dimensions 1.0 x 3.5 x 5.8 (25.2 x 88.9 x 146.5 mm)
Weight 10.5 oz (299 g)

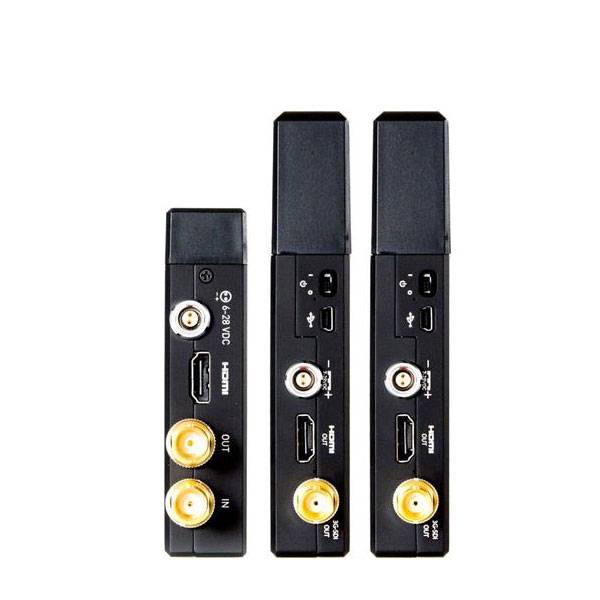

Wirelessly transmit lossless SDI or HDMI video to two locations, each up to 500' away with this Teradek Bolt 500 SDI/HDMI Video Transmitter and Two Receiver Set. Supporting HD resolutions up to 1080p60 with near-zero latency, the Bolt 500 system can find its way into studio and field video productions. Since both HDMI and SDI I/O are offered, the Bolt 500 system can convert between the two. Each receiver can output HDMI or SDI, regardless of the source signal type. A single transmitter can support up to four receivers, so multiple monitors or recorders can receive the same signal. In addition to SDI and HDMI, Teradek's USB 3.0 GRAB Engine is onboard as another output option. It sends an uncompressed video signal over USB 3.0 for capture or direct streaming via a compatible PC.
Bolt 500 3G-SDI/HDMI Video Transmitter
The Bolt 500 3G-SDI/HDMI Video Transmitter from Teradek transmits visually lossless video up to 500' with no delay. Within the unlicensed 5 GHz channel range, you can use multiple Bolts in one location without any interference. Thanks to built-in cross-conversion supported by every Bolt model, the transmitter supports real-time standards and cross-conversion from receiver to transmitter, allowing you to automatically convert resolution, frame rate, and inputs/outputs (HDMI / 3G-SDI) without any additional hardware. The built-in HDMI to SDI converter allows you to connect both your on-camera monitor and video source via the same device, thereby making Bolt 500 suitable for use with MoVI and other separately available gimbals.
Eleven 5 GHz channels
Supports full HD (1080p) resolution
Low latency of up to 0.001 sec
Integrated 3D LUT technology
Upload your own LUTs using the free Bolt Manager software or select from a number of built-in presets using Bolt's OSD
Bolt's USB 3.0 GRAB Engine allows you to ingest a Bolt feed directly into a computer or your DIT cart without any added delay or loss of quality
Supports metadata, timecode, and start/stop flags from many camera manufacturers, including RED, ARRI, Canon, Sony, and Panasonic
Housed in a hardened aluminum chassis
1/4"-20 holes for mounting to cameras and monitors as well as 2-pin LEMO connectors for power
UPC: 854980006688
Bolt 500 3G-SDI/HDMI Video Receiver
The Bolt 500 3G-SDI/HDMI Video Receiver from Teradek receives visually lossless video from up to 500' away with no delay. With 40 MHz channel, you can use multiple Bolts in one location without any interference. Thanks to built-in cross-conversion supported by every Bolt model, the receiver supports real-time standards and cross-conversion from receiver to transmitter, allowing you to automatically convert resolution, frame rate, and inputs/outputs without any additional hardware.
Eleven 40 MHz channels
Supports full HD (1080p) resolution
Low latency of up to 0.001 sec
Integrated 3D LUT technology
Upload your own LUTs using the free Bolt Manager software or select from a number of built-in presets using Bolt's OSD
Bolt's USB 3.0 GRAB Engine allows you to ingest a Bolt feed directly into a computer or your DIT cart without any added delay or loss of quality
Supports metadata, timecode, and start/stop flags from many camera manufacturers, including RED, ARRI, Canon, Sony, and Panasonic
Housed in a hardened aluminum chassis
1/4"-20 holes for mounting to cameras and monitors as well as 2-pin LEMO connectors for power
