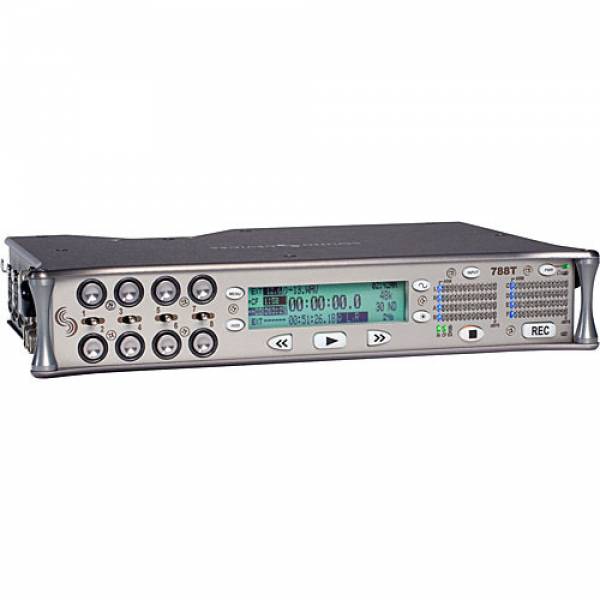

GRAVADOR DE ÁUDIO MULTIPISTA 8 CANAIS SOUND DEVICES 788T

GRAVADOR DE ÁUDIO MULTIPISTA 8 CANAIS SOUND DEVICES 788T

Type Portable 8-Channel Digital Hard Disk Recorder
Recording/Reading Methods Medium:
ATA-5 2.5" EIDE, 4200-7200 RPM Hard Drive*
Compact Flash Type I, II and Microdrive*
Please see manufacturer's site for a list of approved cards
File Format:
WAV, BWF, MP3
*FAT32 Formatted
Recording Bit Rate 16-bit, 24-bit
Sampling Frequency Internal: Up to 96kHz
External: 32-96.096kHz (Word Clock Input)
Number of Channels 12
Frequency Response 10Hz - 40kHz, +0.1/-0.5dB (gain controls centered)
Signal-to-Noise Ratio Not Specified by Manufacturer
Dynamic Range A/D:
114dB, A-weighted
110dB, 20Hz - 22kHz bandwidth
D/A:
112dB, A-weighted
108dB, 20Hz - 22kHz bandwidth
Total Harmonic Distortion (THD) Mic: 0.004% max.(1kHz, 22Hz - 22kHz BW, gain control down, -15dBu input)
Line: 0.004% max.(1kHz, 22Hz - 22kHz BW, gain control down, +16 dBu input
Inputs Mic/Line - Balanced 3-pin XLR x4
Mic/Line - Balanced TA3-male x4
AES3 - Multi-pin I/O Connector
FireWire 800
FireWire 400
USB
Output
Analog Balanced - TA3-male x4
Analog Unbalanced - Stereo L/R (5,6) 1/8" (3.5mm) Mini
Balanced AES Out - TA3-male (1,2 / 3,4) x2
Timecode Output
FireWire 800
FireWire 400
USB
Headphone Output 1/4" Phone
1/8" (3.5mm) Mini
Dimensions (WxDxH) 10.1 x 6.4 x 1.8" (256.54 x 163 x 44mm)
Weight 3 lb 12 oz (1.7kg) (without battery)
The Sound Devices 788T Portable Digital Recorder builds on the success of the Sound Devices 7-series digital recorders. The 788T is a lightweight and compact professional recorder and features 8 digital recording tracks. An internal 160 GB SATA hard drive, CompactFlash media with UDMA support, external FireWire hard drive or DVD-RAM (with bus powering) all serve as compatible recordable media. Any or all of these options may be used to record audio simultaneously and the 788T serves as a mass storage device when connected to high-speed USB / FireWire ports on Windows and MAC OSX computers.

Eight microphone and line-level inputs are provided as four XLR and four TA3-male connections. The 788T has eight channels of balanced AES3 digital input and six channels of balanced AES3 output for simple integration with compatible AES3 digital cameras and mixers. All of the 7-series feature still apply; including 48V phantom, limiter, polarity reverse, high-pass, selectable delay and headphone monitoring on each input.

Note: Firmware revision 2.01 for the 788T is now available for download andinstallation. It is recommended that all 788T users and owners update now. Detailed instructions and changes are on the download page at: http://www.sounddevices.com/download/788t-firmware.htm

Please note that not all memory cards are approved to work with this device. Please check manufacturer's website for a list of approved cards.
Compact and Durable

8-track portable hard disk/Compact Flash audio recorder with 160GB internal hard drive and full time code implementation

Compact aluminum and stainless-steel chassis for exceptional durability and light weight, resistant to environmental extremes

Comprehensive Professional Connectivity

Eight channels of improved microphone and line inputs with phantom power, limiting, and high-pass filters

Three-channel, balanced mic/line level outputs on TA3 connectors

Multi-pin AES3 I/O for complete compatibility with supported digital cameras, mixers, etc

High speed FireWire and USB port for high-speed data transfer to computers for editing and backup

High-Resolution Recording and Synchronization

24-bit or 16-bit with or without dither, up to 96kHz sampling rates

Input-to-track assignment with 256 possible routing combinations

WAV or BWF format, mono or poly files, uncompressed PCM audio

MP3 encode and decode, 32 to 320 kb/s stereo file

Stable, reliable Ambient time code circuitry, tunable to <0.2 PPM accuracy with all relevant TC rates, full Word Clock I/O

Flexible Metering and Powering

Programmable backlit, sunlight-viewable LED level metering; selectable, menu-driven metering ballistics

Large backlit, adjustable LCD display; fully dedicated status and activity LED indicators, backlit controls

Removable Lithium-Ion rechargeable battery, compatible with Sony M- and L-mount batteries

10-18VDC external input powers and charges on-board battery, 100-240V worldwide power supply
